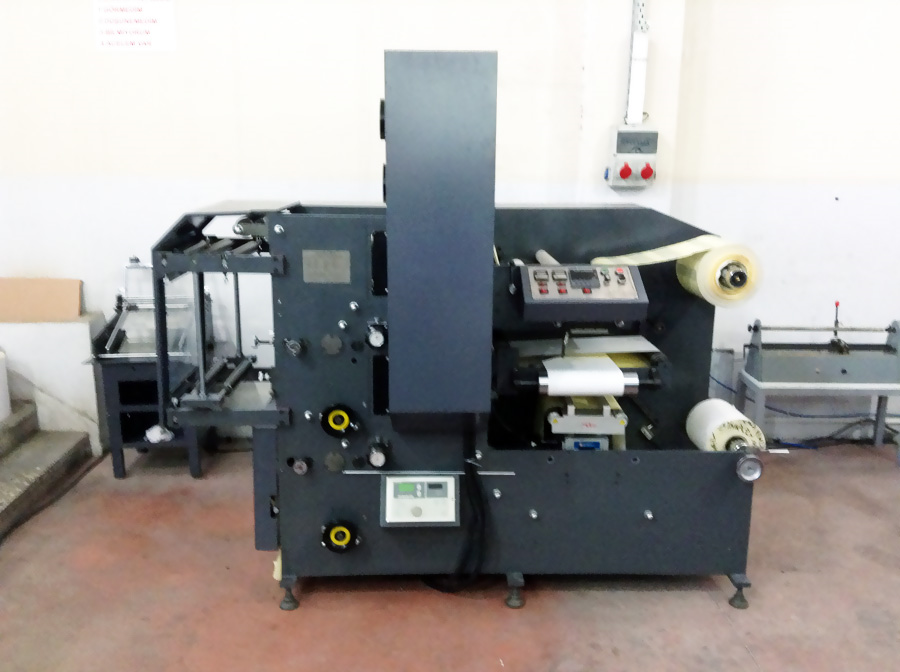

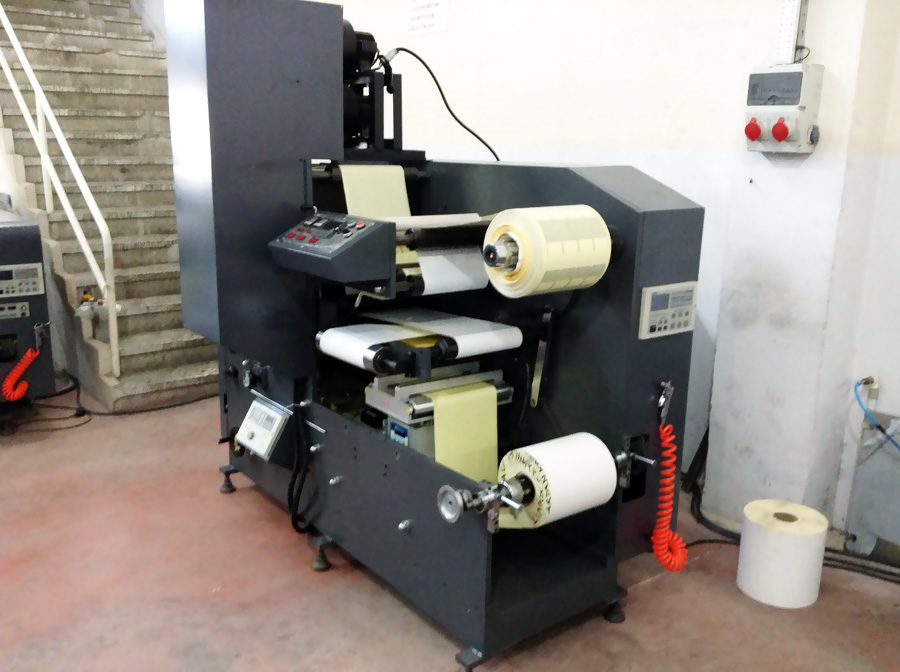

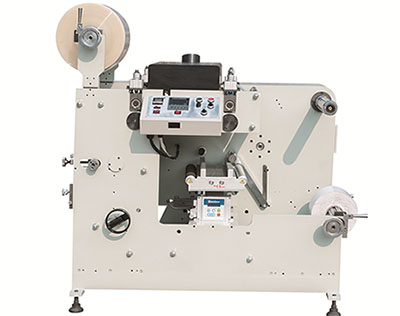

WJRS-320 Automatic Coating Machine
This machine is generally used for one color roll paper flexo printing (70-250 gsm) and self-adhesive paper coating (solid printing) or one color flexo printing. It has functions of IR drying and re-winding.
The main motor is driven by converter with auto tension control for unwinding and auto tension control for rewinding. It has a compact structure with easy operation, no-air pollution. If UV unit and film lamination device are equipped with the machine it can do UV glue film lamination and UV vanishing.
Optional functions: UV lamination device and UV vanishing
Item |
Specification |
Unit |
Max. web width |
320 |
mm |
Printing speed |
15-60 |
m/minute |
Max. Unwinding Dia. |
500 |
mm |
Max. Rewinding Dia. |
500 |
mm |
Printing length |
178-340 |
mm |
Printing color |
1 |
Color |
Main power |
1.5 |
KW |
Overall dimensions (L*W*H) |
1500*1100*1300 |
mm |
Weight |
800 |
Kg |
