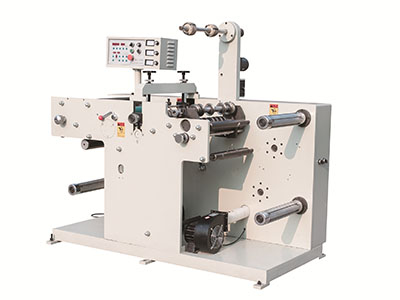

WJMF-350 Rotary Die-cutting And Slitting Machine
WJMF-350 die-cutting machine is a new model with rotary die-cutting and slitting function. It’s suitable for the blank adhesive labels. Die-cutting, slitting can be finished in one process.It has the function of automatic meter counting, automatic stopping , web-guide and waste-off.
The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation ,accurate slitting ,steady running etc.
Optional Function: Glue Tape Lamination.
| Item |
Specification |
Unit |
| Max. web width |
350 |
mm |
| Max. die-cutting speed |
75 |
m/min. |
| Max. slitting speed |
75 |
m/min. |
| Min. slitting width |
18 |
mm |
| Max. unwinding diameter |
500 |
mm |
| Max. rewinding diameter |
500 |
mm |
| Overall dimensions |
1600*1000*1500 |
mm |
| Weight |
650 |
Kg |
