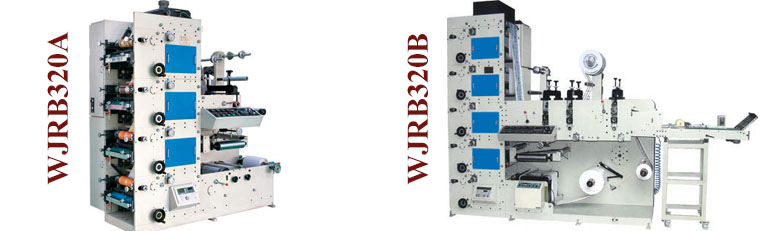

          WJRB-320A/B Flexo- Graphic Printing machine



          a) The main motor adopts imported converter to adjust the speed in a stepless way.

          b) Unwinding and rewinding are controlled through magnetic powder brake and clutch. It uses Japanese Mitsubishi tension controller to control the tension of the machine to ensure stable tension and precise overlapping.

          c) The machine is equipped with ceramic rollers for inking with the features of stable inking, no color difference, long life span, wear and tear endurance, anti corrosion which will also increase the print quality and efficiency.

          d) The printing unit can register in 360 degrees at longitudinal direction and do lateral adjustment as well which greatly shorten the pre-print time and reduces the material waste.

          e) . Each printing unit is equipped with one infrared drier to dry the print right after it is printed.

          f) The inking roller can automatically fall off at stoppage and run at low speed in order to keep the ink from being dry and solid.

          g) Unwinding, printing, vanishing, drying, laminating and rewinding of roll material can be done in one process. It is characterized by wide application, no ink population, fast dry and quick print. It is an ideal printing machine for the commercial bill, board and high-grade adhesive label.

          h) It is also optional for the machine to be equipped with UV unit, web-guide and corona Unit.



          Main Specification

          Items Unit WJLZ-280 WJLZ-350
          Max.Web Width mm 280 350
          Max.Printing Width mm 260 330
          Max. Un-winder Dia. mm 600 600
          Max. Re-winder Dia. mm 600 600
          Paper Range   g/? 80-350 80-350

          Printing

          Length
          Intermittent mm 60-260 60-345
          Full Rotary mm 304 393
          Printing Speed times/min 200 (Decided by the print length and the quality requirement) 200 (Decided by the print length and the quality requirement)
          Main Power kw 14 16
          UV kw 3.6 per station 3.6 per station
          Overall Dimension(LXWXH) mm 8000*2800*1800mm 8000*2800*1800mm
          Machine weight kg 7200 8600
          Voltage and Current Frequency   380 V -Three phase; 50 Hz 380 V -Three phase; 50 Hz
